CHONDROMA

HALLMARK FEATURES:
      • Lytic lesion in hands
      • with calcification


Enchondroma is name given to intramedullary chondroma.
Well defined
Lytic with matrix calcification
Sharp but not sclerotic margin


There are also periosteal, juxtacortial and soft tissue variants

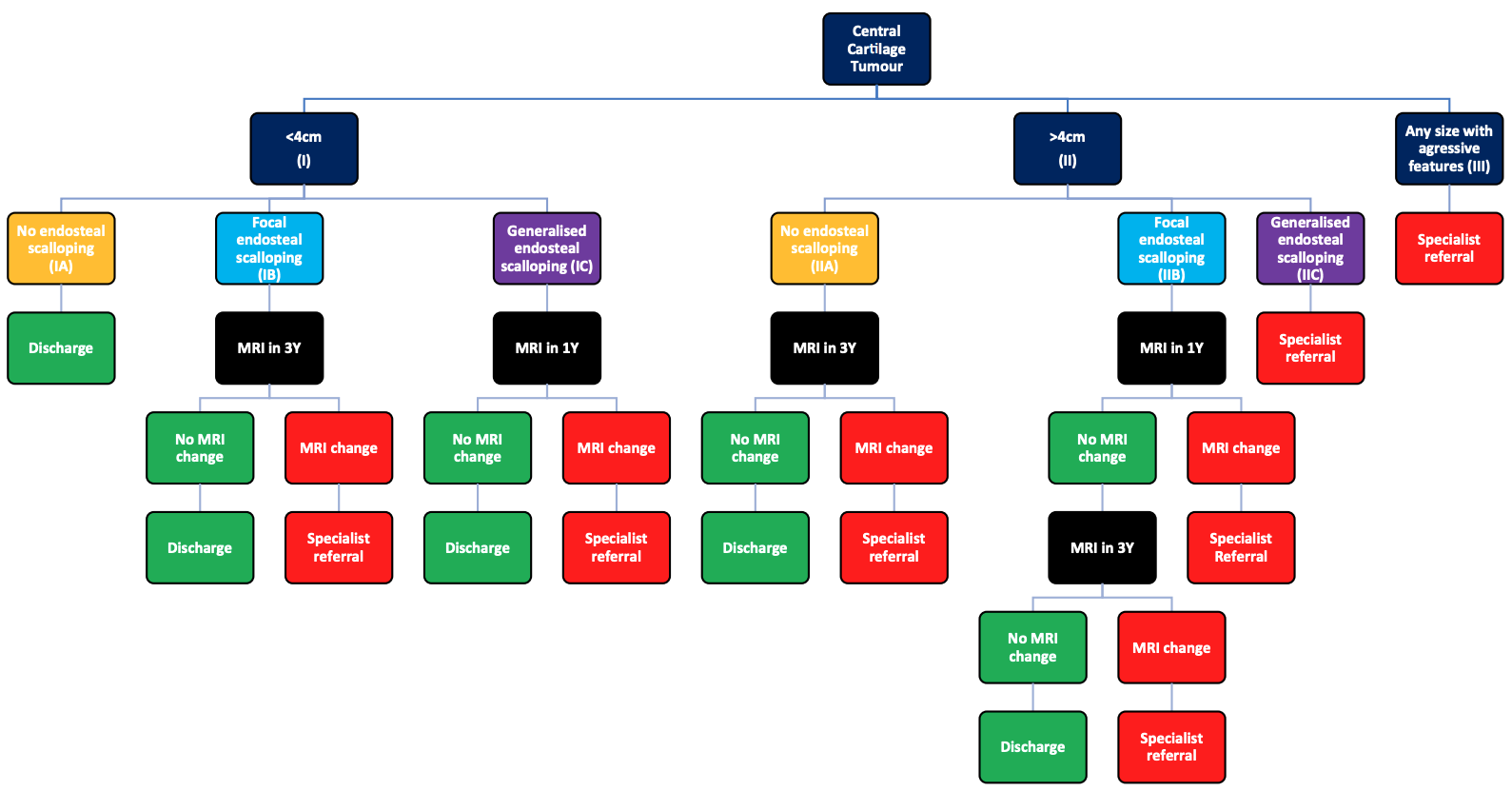

If more than 4cm craniocudal length or
more than 10% or 36 degrees of endosteal scalloping
more active follow up is required

Patel A et al., A pragmatic approach to the imaging and follow-up of solitary central cartilage tumours of the proximal humerus and knee, Clinical Radiology, https://doi.org/10.1016/j.crad.2019.01.025

CHONDROMA SYNDROMES
ENCHONDROMATOSIS
Olliers disease
Multiple lesions
Often in same bone
Classical appearance in ileum
Higher % of malignant change, circa 25%
MAFUCCI SYNDROME
Multiple enchondromas with haemangioma
Recognosed by soft tissue phlebolith formation



OSTEOCHONDROMA

HALLMARK FEATURES:
      • Protrudes from bone
      • Medullar continuity with parent bone


Protrudes from bone so easy to distinguish from other lesions.
Medullary continuity must be present. If not consider BPOP
Cartilage cap and bursa may be present. Cap thickness should not exceed 15mm

CHONDROMYXOID FIBROMA

HALLMARK FEATURES:
      • Sclerotic margin
      • Eccentric
      • Proximal tibia


Eccentric
Round or oval
Metaphyseal but may cross to epiphysis
Well defined with sclerotic or demarcated margin
No matrix calcification
May appear trabeculated

CHONDROBLASTOMA

HALLMARK FEATURES:
      • Epiphyseal
      • Children


Classic epiphyseal lesion
Second decade
Proximal tibia, proximal humerus, distal femur, greater trochanter
also ileum
Oval, lytic, well demarcated
50% have matrix calcification
